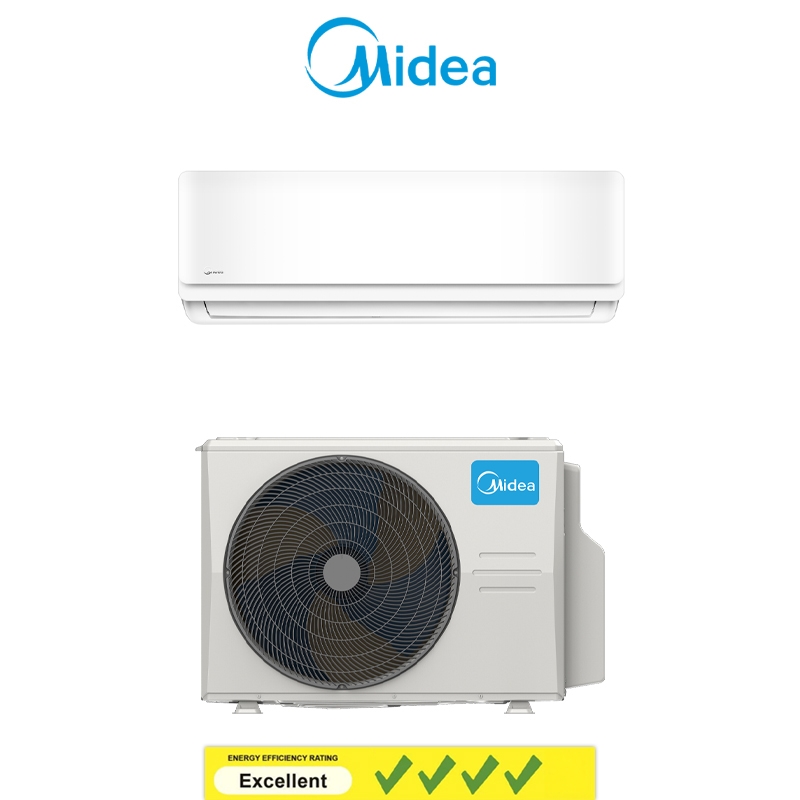

MIDEA MP SERIES SYSTEM 1 AIRCON 24000 BTU - MPID-24 & MPOD-24D
24000BTU
S$1,899.00
Deliver in 5 - 7 working days
| MODEL | ||||||
| Indoor | MPID-09 | MPID-12 | MPID-18 | MPID-24 | ||
| Outdoor | MPOD-09E | MPOD-12E | MPOD-18D | MPOD-24D | ||
| Power Supply | V-Ph-Hz | 220~240V / 1Ph / 50Hz | ||||
| Capacity | Btu/h | 10000 (2900~11200) | 12300 (2900~13900) | 17060 (5000~19000) | 24566 (8600~28000) | |
| Power Consumption | W | 650 (140~780) | 850 (134~1028) | 1250 (444~1454) | 2110 (431~2650) | |
| Rated Current | A | 3.00 (0.80~3.70) | 4.10 (1.09~4.75) | 5.80 (3.40~6.70) | 9.79 (2.00~12.30) | |
| COP (Full / Weighted) | (4.61 / 5.73) | (4.32 / 5.55) | (4.23 / 5.08) | (3.78 / 4.98) | ||
| Max. Input Consumption | W | 2300 | 2100 | 2850 | 3800 | |
| Max. Current | A | 10.5 | 9.5 | 13.0 | 18.0 | |
| Indoor Air Flow (H/M/L) | m³/h | 520/460/340 | 530/450/310 | 750/650/400 | 1320/1120/920 | |
| Indoor Sound Level (H/M/L) | dB(A) | 39.5/36.0/24.0 | 40.0/35.0/25.8 | 45.5/36.5/28.8 | 52.5/44.5/33.8 | |
| INDOOR UNIT | ||||||
| Indoor Unit | Dimension (W×D×H) | mm | 802x189x297 | 802x189x297 | 965x215x319 | 1080x226x320 |
| Packing (W×D×H) | mm | 875x285x380 | 875x285x380 | 1045x355x410 | 1155x415x335 | |
| Net/Gross Weight | Kg | 8.3/11.0 | 8.3/11.0 | 10.5/14.0 | 13.1/17.0 | |
| Outdoor Sound Level | dB(A) | 51.5 | 52.0 | 53.5 | 59.5 | |
| OUTDOOR UNIT | ||||||
| Outdoor Unit | Dimension (W×D×H) | mm | 765x303x555 | 805x330x554 | 890x342x673 | 890x342x673 |
| Packing (W×D×H) | mm | 887x337x610 | 915x370x615 | 995x398x740 | 995x398x740 | |
| Net/Gross Weight | Kg | 25.0/27.5 | 28.1/30.9 | 37.3/40.3 | 40.1/43.3 | |
| Refrigerant Type | Kg | R32/0.55 | R32/0.65 | R32/0.90 | R32/1.10 | |
| PIPING | ||||||
| Piping | Liquid/Gas | mm | 6.35/9.52 | 6.35/9.52 | 6.35/12.70 | 6.35/15.88 |
| Liquid/Gas | inch | 1/4"/3/8" | 1/4"/3/8" | 1/4"/1/2" | 1/4"/5/8" | |
| Max. Length | m | 25 | 25 | 30 | 50 | |
| Max. Height | m | 10 | 10 | 20 | 25 | |
| Drain | mm | 19 | ||||
| Operation Temperature | °C | 21~43 | ||||
| Application Area | m² | 13~20 | 16~24 | 23~33 | 33~48 | |
| NEA MELS Tick | 5 Ticks | |||||
